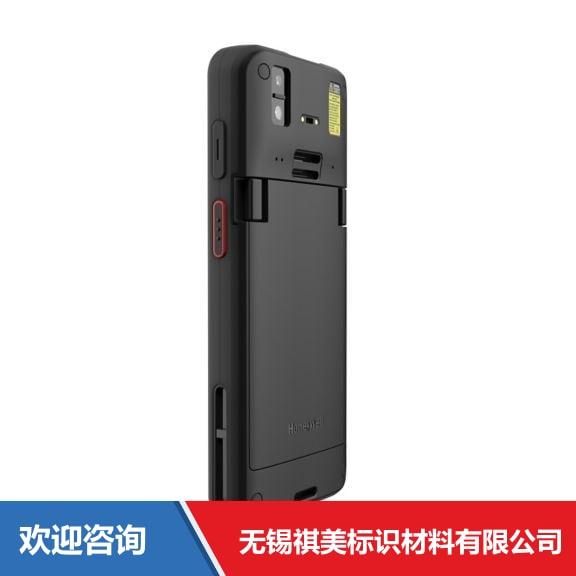

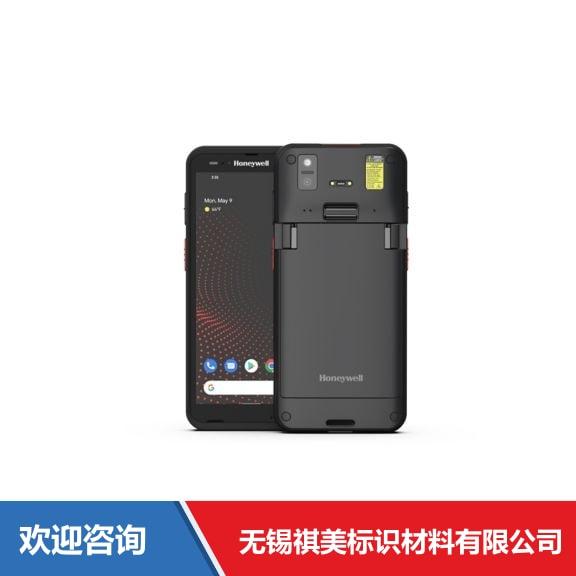

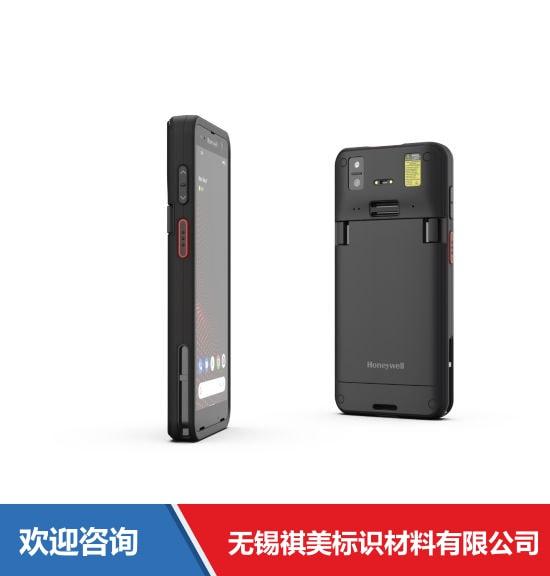

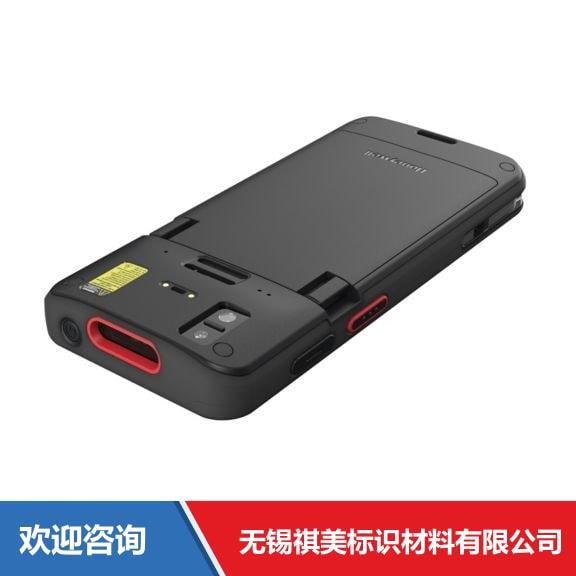

Honeywell CT70 移动数据终端

获取报价电话咨询

快速回答

Honeywell CT70 移动数据终端是什么？

Honeywell CT70 移动数据终端，搭载Android 14-19系统，支持5G/Wi-Fi 7，超耐用设计。

1 / 4

产品简介

Honeywell CT70 移动数据终端，搭载Android 14-19系统，支持5G/Wi-Fi 7，超耐用设计。

核心优势

5G + Wi-Fi 7/6E 连接
Android 14-19 系统支持
FlexRange 扫描引擎，远距离扫描
IP68 防尘防水，1.5米跌落保护
7000mAh大容量电池

关键参数

Camera: 13-megapixel rear camera, phase detection autofocus, supports torch mode; 8-megapixel front-facing camera
Camera Position: Rear and Front
Housing Grade: Standard

规格参数

参数	规格
Camera	13-megapixel rear camera, phase detection autofocus, supports torch mode; 8-megapixel front-facing camera
Camera Position	Rear and Front
Housing Grade	Standard
For Use With	Android
Connectivity	Wi-Fi\|Wi-Fi & Cellular
Environment	Standard
Application	Transportation & Logistics, Grocery Retail, Field Operations
Durability	Ultra-rugged
Features	Integrated RFID; Integrated NFC in display; Edge AI capable; Wi-Fi 7
Computer Wireless Communication	5G , CBRS, Wi-Fi 7, Wi-Fi 6E, BT v6.0, UHF, NFC
Bluetooth Specifications	Class 1.5, V6.0 Bluetooth and BLE
WWAN Specifications	Global bands support, device certified with GCF-PTCRB, ATT, TMO, VZW AT&T FirstNet Compliant LTE Advanced Support 5G FR1: Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79
WLAN Specifications	Wi-Fi certified; Wi-Fi 6E & Wi-Fi 7 Certified IEEE802.11a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax/be, 2x2 MU-MIMO; Triband (2.4GHz, 5GHz, 6GHz); Wi-Fi 6E (801.11ax); Supports multi-link operation (MLO)
RFID Specifications	Integrated NFC reader in display, compliant with ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 (ICode), MIFARE 1K / 4K, MIFARE DESFire, Sony FeliCa, ISO/ IEC 18092 (Type F), Card Emulation; Contactless payment support, ECP 1.0 and ECP 2.0
GPS Specifications	GPS, GLONASS, Galileo, Beidou, NAVIC, QZSS; Dual-Band GNSS — concurrent L1/G1/ E1/B1 (GPS/QZSS, GLONASS, Galileo, BeiDou) + L5/E5a/B2a (GPS/QZSS, Galileo, BeiDou); a-GPS, Supports XTRA, SBAS.
Storage Temperature Range	-30°C to 70°C (-22°F to 158°F)
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Operating Humidity	5% to 95% (non-condensing)
Tumble Specifications	Exceeds 3,000 0.5 m (1.6 ft) tumbles and 1,500 1.0m (3.3 ft) tumbles without boot; Exceeds 2,000 1m (3.3 ft) tumbles with boot per IEC 60068-2-32 specification
Drop Specifications	Multiple 2.4 m (8 ft) drops to concrete at -20°C to 50°C (-4°F to 122°F) per MIL-STD 810H booted Multiple 1.8m (6ft) drops to concrete at -20°C to 50°C (-4°F to 122°F) per MILSTD- 810H without boot
Protection Ratings	IP68/IP65
Overall Dimensions	170 mm x 78.6 mm x 16.7 mm (grip area) with standard battery; 170 mm x 78.6 mm x 22.3 mm (grip area) with extended battery
Display Resolution	Full High-Definition (2280 x1080)
Scan Engine Range	Mid Range (0-5m) Standard Range (0-1m)
Scan Engine Type	Laser aimer
Scan Distance	Mid Range (0-5m)\|Standard Range (0-1m)
Display Size	15.2 cm (6.0 in)
Scan Range	Standard Range and FlexRange
Processor	Qualcomm Snapdragon QCS/ QCM6690 octa-core, up to 2.9GHz, Edge AI enabled (2.0GHz optional).
Keyboard	Full Touchscreen
Network	Wi-Fi and Cellular
Keypad	Full Touchscreen
Warranty Duration	1 year
Decode Capability	Honeywell FlexRange™ S0803 standard, Honeywell S0703 (1D/2D barcode symbologies), Honeywell SDKs for Android, DPM supported via license
Operating System	Android
Platform	Mobility Edge
Battery Capacity	4,775 mAh standard battery; 4,775 mAh wireless battery; 7,692 mAh extended battery
Battery Types	Hot swap; Field replaceable
Battery Type	Li-ion
Memory	8GB LPDDR5 RAM, 128GB UFS 3.1 Flash
