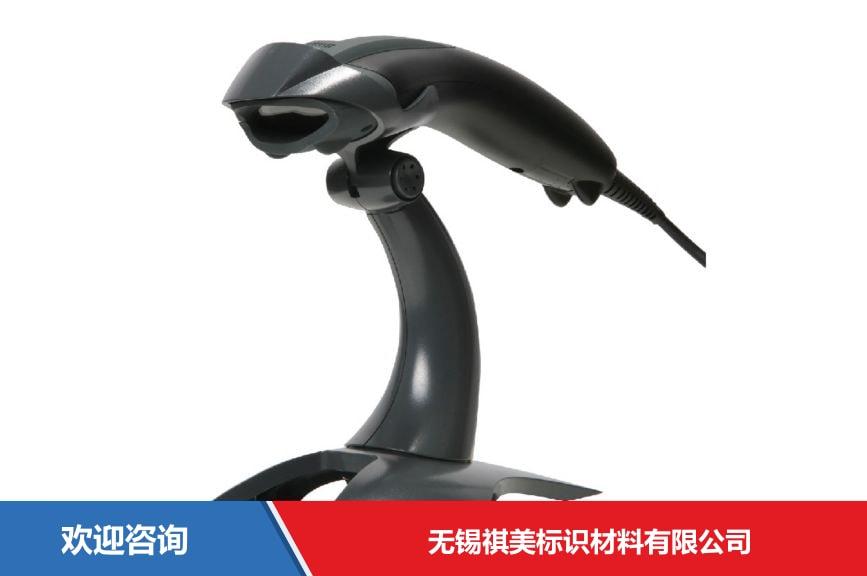

Honeywell 霍尼韦尔 Voyager 1200g 移动数据终端
快速回答
Honeywell 霍尼韦尔 Voyager 1200g 移动数据终端 是什么?
Voyager 1200g 通用型扫描仪是霍尼韦尔旗下的移动数据终端,主要技术参数包括Skew70,Minimum Brightness0,Maximum Brightness70,000,Decode Capability1D,适用于移动数据终端相关的工业应用场景。苏州斯康提供本地技术支持与专业选型服务。

产品简介
Voyager 1200g 通用型扫描仪是霍尼韦尔旗下的移动数据终端,主要技术参数包括Skew70,Minimum Brightness0,Maximum Brightness70,000,Decode Capability1D,适用于移动数据终端相关的工业应用场景。苏州斯康提供本地技术支持与专业选型服务。
核心优势
- Voyager™: 1200g(有线)激光条码扫描仪基于世界上最畅销的单线激光扫描仪平台构建。其几乎可以扫描所有线性条码。其在读取质量不佳,甚至损坏条…
关键参数
- Skew
- 70
- Minimum Brightness
- 0
- Maximum Brightness
- 70,000
规格参数
| 参数 | 规格 |
|---|---|
| Skew | 70 |
| Minimum Brightness | 0 |
| Maximum Brightness | 70,000 |
| Decode Capability | 1D |
| Scanning Range | Standard range (SR) |
| Print Contrast | 10 |
| Depth of Field | 0 - 14.4 in |
| Scan Distance | Standard Range (0-1m) |
| Scan Pattern | Single Scan Line |
| Brightness | 0 - 70000 lux |
| Pitch | 60 |
| Minimum Operating Temperature | 0 °C|32 °F |
| Maximum Operating Temperature | 122 °F|50 °C |
| Minimum Storage Temperature | -20 °C|-4 °F |
| Maximum Storage Temperature | 140 °F|60 °C |
| Minimum Operating Humidity | 0% |
| Maximum Operating Humidity | 95% |
| Storage Temperature Range | - 20 - 60 °C|- 4 - 140 °F |
| Operating Temperature | 0 - 50 °C|32 - 122 °F |
| Operating Humidity | 0 - 95 % |
| Bluetooth | No |
| Host System Interface | KBW|RS-232|RS-232C|RS-485|USB |
| Power Connector Type | Corded |
| Engine Type | 1D Laser |
| Aimer Type | LED |
| Wireless | No |
| Drop Specifications | 30 1.5 m (5 ft) drops to concrete |
| Protection Ratings | IP42 |
| IP Rating | IP42 |
| Overall Dimensions | 3 x 7.1 x 3.8 in|6.6 x 18 x 9.7 cm |
| Warranty Duration | 5 yr |
| Product Call-Outs | Class-Leading Presentation Scanning: Increases throughput by providing object detection and automatic in-stand detection and configuration.|CodeGate® Technology: Enables users to ensure that the desired bar code is scanned before transmitting data, making the scanner ideal for use in menu scanning applications.|Contemporary, Ergonomic Design: Ensures operator comfort and productivity by incorporating an integrated finger groove in a sleek, lightweight industrial design that fits well in most hands.|Multi-Interface: Minimizes costs by delivering support for USB, keyboard wedge, and RS232 interfaces in a single scanner.|Outstanding Scan Performance on Poor Quality and Damaged Bar Codes: Maintains productivity by providing a worry-free linear scanning solution that minimizes the need for manual data entry.|Superior Out-of-Box Experience: Simplifies set up with tool-free stand assembly; automatic in-stand detection and configuration; and automatic interface detection and configuration. |
| Product Overview | Voyager™ 1200g (wired) laser barcode scanners are built on the world’s best-selling single-line laser scanner platform. They aggressively scan virtually all linear barcodes. And they do an exceptional job of reading poor quality and even damaged barcodes. |
| Product Details | The Voyager 1200g (wired) barcode scanners give you able-bodied performance and flexibility for a wide variety of hands-free and handheld scanning applications. Regardless of the model you choose, these Voyager scanners deliver aggressive scan performance on virtually all linear barcodes. Decode poorly printed, smudged, faded and other difficult-to-read barcodes with ease. Scan high-density barcodes, too, with resolution down to 3.5 mil. In most cases, that eliminates the need to purchase specialty scanners. And take advantage of the Voyager scanner’s class-leading, hands-free presentation scanning. It maximizes throughput with updated object detection and automatic in-stand detection and configuration.NEWLINEWe designed these Voyager scanners to decrease your downtime and service costs too. Single shock-mounted PCB delivers greater impact resistance. Recessed button is protected by an integrated rubber co-mold that minimizes the impact of accidental drops. Designed with a protected, scratch-resistant glass window and an IP42-rating. And if you ever misplace a scanner, the Voyager’s paging system uses visual and auditory signals to help you find the missing device quickly. |
| Operating Power | 0.7 W |
| Standby Power | 0.35 |
| Input Voltage | 5 V DC |
| Connectivity | Corded |
| Form Factor | Curved |
| Features | CodeGate™ Technology|Object Detection |
| Industry | Retail |
| Brand | Honeywell |
应用场景
- · Voyager 1200g 通用型扫描仪在仓库盘点作业中实现移动化数据采集,工作人员无需往返电脑即可完成库存数据的实时更新
- · Voyager 1200g 通用型扫描仪可用于医院护士站的移动医嘱执行和药品核对,减少人工核对错误,保障患者用药安全
- · Voyager 1200g 通用型扫描仪适用于零售门店的移动收银和库存查询场景,店员可在货架旁即时完成商品信息查询和补货操作
- · 快递配送人员使用Voyager 1200g 通用型扫描仪扫描包裹条码并实时上传签收信息,有效提升末端配送的效率和签收准确率
方案推荐
暂无关联方案示例。
常见问题(FAQ)
Voyager 1200g 通用型扫描仪与同类移动数据终端相比有哪些优势?
Voyager 1200g 通用型扫描仪的主要技术参数有哪些?各项指标代表什么含义?
Voyager 1200g 通用型扫描仪适合在哪些行业和场景中使用?
Voyager 1200g 通用型扫描仪日常使用中需要注意哪些维护保养事项?
在哪里可以购买Voyager 1200g 通用型扫描仪?售后服务如何保障?
快速问答
Voyager 1200g 通用型扫描仪与同类移动数据终端相比有哪些优势?
Voyager 1200g 通用型扫描仪是霍尼韦尔旗下的移动数据终端产品,型号为。该设备具备Skew70、Minimum Brightness0、Maximum Brightness70,000、Decode Capability1D等核心参数指标,在同级别产品中表现出色。相比同类型设备,在稳定性和耐用性方面经过充分验证,适合对品质要求较高的企业用户选购。
Voyager 1200g 通用型扫描仪的主要技术参数有哪些?各项指标代表什么含义?
Voyager 1200g 通用型扫描仪()的核心技术参数包括:Skew为70,Minimum Brightness为0,Maximum Brightness为70,000,Decode Capability为1D,Scanning Range为Standard range (SR),Print Contrast为10,Depth of Field为0 - 14.4 in,Scan Distance为Standard Range (0-1m),Scan Pattern为Single Scan Line,Brightness为0 - 70000 lux,Pitch为60,Minimum Operating Temperature为0 °C|32 °F,Maximum Operating Temperature为122 °F|50 °C,Minimum Storage Temperature为-20 °C|-4 °F,Maximum Storage Temperature为140 °F|60 °C,Minimum Operating Humidity为0%,Maximum Operating Humidity为95%,Storage Temperature Range为- 20 - 60 °C|- 4 - 140 °F,Operating Temperature为0 - 50 °C|32 - 122 °F,Operating Humidity为0 - 95 %,Bluetooth Specifications为N/A,Bluetooth为No,Host System Interface为KBW|RS-232|RS-232C|RS-485|USB,Power Connector Type为Corded,Engine Type为1D Laser,Aimer Type为LED,Wireless为No,Charging为N/A,Drop Specifications为30 1.5 m (5 ft) drops to concrete,Protection Ratings为IP42,IP Rating为IP42,Overall Dimensions为3 x 7.1 x 3.8 in|6.6 x 18 x 9.7 cm,Warranty Duration为5 yr,Product Call-Outs为Class-Leading Presentation Scanning: Increases throughput by providing object detection and automatic in-stand detection and configuration.|CodeGate® Technology: Enables users to ensure that the desired bar code is scanned before transmitting data, making the scanner ideal for use in menu scanning applications.|Contemporary, Ergonomic Design: Ensures operator comfort and productivity by incorporating an integrated finger groove in a sleek, lightweight industrial design that fits well in most hands.|Multi-Interface: Minimizes costs by delivering support for USB, keyboard wedge, and RS232 interfaces in a single scanner.|Outstanding Scan Performance on Poor Quality and Damaged Bar Codes: Maintains productivity by providing a worry-free linear scanning solution that minimizes the need for manual data entry.|Superior Out-of-Box Experience: Simplifies set up with tool-free stand assembly; automatic in-stand detection and configuration; and automatic interface detection and configuration.,Product Overview为Voyager™ 1200g (wired) laser barcode scanners are built on the world’s best-selling single-line laser scanner platform. They aggressively scan virtually all linear barcodes. And they do an exceptional job of reading poor quality and even damaged barcodes.,Product Details为The Voyager 1200g (wired) barcode scanners give you able-bodied performance and flexibility for a wide variety of hands-free and handheld scanning applications. Regardless of the model you choose, these Voyager scanners deliver aggressive scan performance on virtually all linear barcodes. Decode poorly printed, smudged, faded and other difficult-to-read barcodes with ease. Scan high-density barcodes, too, with resolution down to 3.5 mil. In most cases, that eliminates the need to purchase specialty scanners. And take advantage of the Voyager scanner’s class-leading, hands-free presentation scanning. It maximizes throughput with updated object detection and automatic in-stand detection and configuration.NEWLINEWe designed these Voyager scanners to decrease your downtime and service costs too. Single shock-mounted PCB delivers greater impact resistance. Recessed button is protected by an integrated rubber co-mold that minimizes the impact of accidental drops. Designed with a protected, scratch-resistant glass window and an IP42-rating. And if you ever misplace a scanner, the Voyager’s paging system uses visual and auditory signals to help you find the missing device quickly.,Operating Power为0.7 W,Standby Power为0.35,Input Voltage为5 V DC,Battery Type为N/A,Connectivity为Corded,Form Factor为Curved,Features为CodeGate™ Technology|Object Detection,Industry为Retail,Brand为Honeywell。这些参数直接影响设备在实际工作中的效率和输出质量,建议根据您的业务场景需求对照选择合适的配置。
Voyager 1200g 通用型扫描仪适合在哪些行业和场景中使用?
Voyager 1200g 通用型扫描仪作为一款移动数据终端,广泛应用于制造业、物流仓储、零售商超、医疗卫生等行业。在生产线标签打印、仓库出入库管理、商品价格标签制作、医院样本标识等场景中均可发挥作用。凭借霍尼韦尔品牌的技术积累,能够满足多种复杂应用环境下的稳定运行需求。
Voyager 1200g 通用型扫描仪日常使用中需要注意哪些维护保养事项?
Voyager 1200g 通用型扫描仪的日常维护建议包括:定期清洁设备外壳和关键部件,避免灰尘积累影响工作精度;按照说明书要求使用指定耗材,确保设备长期稳定运行;避免在高温高湿或强腐蚀环境中长时间使用。建议每季度进行一次全面检查和校准,如遇故障问题可联系苏州斯康获取专业技术支持和维修服务。
在哪里可以购买Voyager 1200g 通用型扫描仪?售后服务如何保障?
您可以通过苏州斯康(斯康条码)购买Voyager 1200g 通用型扫描仪,我们提供正品行货保障和完善的售后服务体系。斯康条码拥有专业的技术团队,可提供选型咨询、安装调试、使用培训等一站式服务。苏州地区支持工程师上门服务,外地客户享受远程技术指导和快速响应的售后保障。
由无锡祺美标识材料有限公司提供选型与本地服务
「Honeywell 霍尼韦尔 Voyager 1200g 移动数据终端」的选型评估、安装调试与售后支持由无锡祺美标识材料有限公司交付。我们是 Zebra / Honeywell / TSC 等品牌授权合作伙伴,服务覆盖无锡、常州、南通及苏北协同区域; 内容版权归祺美所有,转载请注明出处与官网。
- 服务区域
- 无锡 · 常州 · 南通 · 苏北协同
本地化交付与售后保障
服务承诺
苏州斯康承诺为Voyager 1200g 通用型扫描仪用户提供紧急故障4小时内响应处理,服务覆盖苏州及周边地区,支持远程技术指导与现场支持,确保设备高效稳定运行。
资料下载
如需本产品的驱动程序、技术手册、选型资料等,请点击下方按钮提交申请,我们的工程师将在 1 个工作日内与您联系并提供资料。
